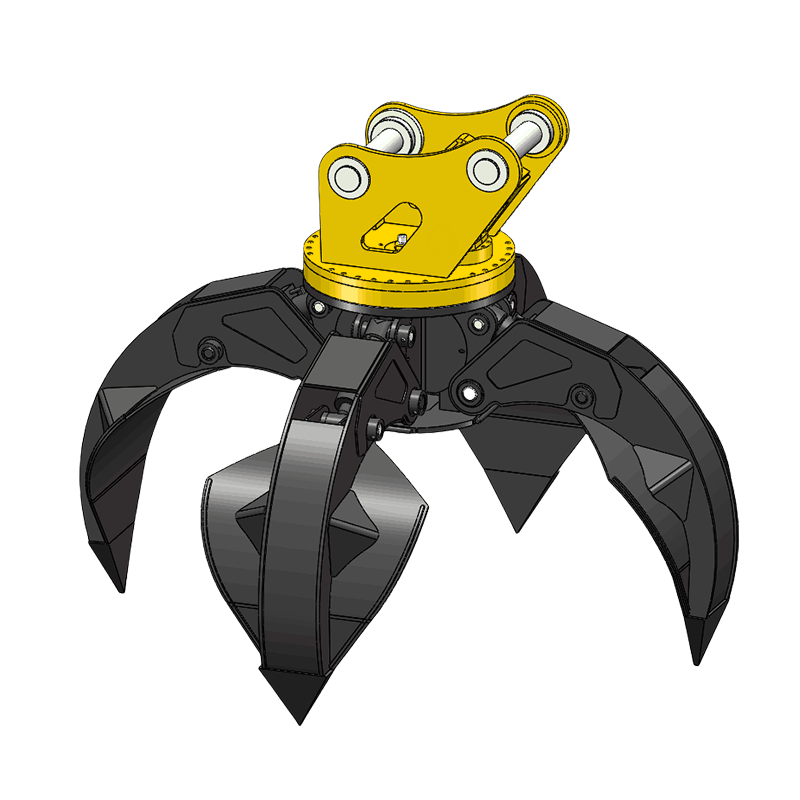

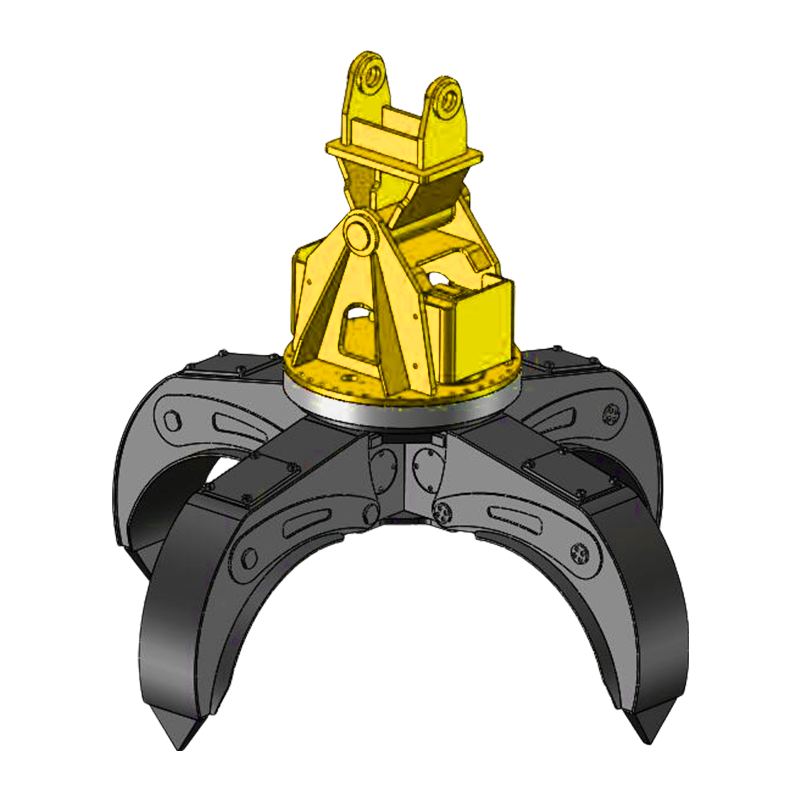

The lotus grab is mainly an automatic material grabbing device. Through fixed hinge seats, hydraulic cylinders, hydraulic grabs, hydraulic oil pipes, and a supporting hydraulic integrated control circuit, it relies on the hydraulic system of an excavator or other construction machinery to provide power. The opening and closing movements of the hydraulic grab bucket are controlled by the control handle, thus realizing operations such as grabbing, handling, and dumping of materials. When excavation work is required, the hydraulic grab can be retracted without affecting the excavation operation, which shows high flexibility and practicality.
1.Among the same products, it has the largest grabbing force and widest grabbing distance.
2.It has built in cylinder and high pressure hose, and the oil circuit is completely closed, protecting the hose and prolonging the service life.
3.The cylinder is equipped with an antifouling ring, which can effectively prevent the tiny impurity in the hydraulic oil from damaging the seals.
| Model | Unit | CN-WW04 | CN-WW06 | CN-WW08 | CN-WW10 | CN-WW14 |
| Dead Weight | kg | 550 | 1050 | 1750 | 2150 | 2500 |
| Max Opening | mm | 1575 | 1866 | 2178 | 2538 | 2572 |
| Open Height | mm | 900 | 1438 | 1496 | 1650 | 1940 |
| Closed Diameter | mm | 600 | 756 | 835 | 970 | 1060 |
| Closed Height | mm | 1150 | 1660 | 1892 | 2085 | 2350 |
| Bucket Capacity | m³ | 0.3 | 0.6 | 0.8 | 1.0 | 1.3 |
